Neighborhood Electric Vehicle that is reasonably priced
ACG Inc ., the recognized leader in affordable Custom Electric Vehicles, is pleased to introduce the all-new
T-Sport®.
LSV/NEV
Certified with a top speed of 25 miles per hour, the T-Sport® is the perfect Electric Vehicle to get you where you need to be.
T-Sport® can be licensed for Street Use in most States in USA for use on City Streets with a posted speed limit of 35 mph or less.
Whether you are going to the golf course, the market, or simply out to enjoy a beautiful day, the T-Sport® is your elegant choice.
ACG, Inc. has revolutionized the Electric Vehicle Industry by reinventing the increasingly popular Golf and Community Car platform from the ground up.
The T-Sport® was built with purpose and reliability in mind.
Our dual purpose platform allows you to transform your T-Sport® from a community vehicle to being the envy of everyone on the golf course with an easy to use hand- release golf bag attachment.
American Custom Golf Cars, Inc. has also certified the T-Sport® with Federal Government
(NHTSA/DOT) so that the T-Sport®
can be offered as a "Neighborhood Electric Vehicle" (NEV), which qualifies it for street use and may
also qualify you for a Federal Income Tax Credit with IRS .
Unmatched Engineering
The quality of the T-Sport® begins in the engineering of the car from the ground up.
The T-Sport® is built using completely new parts.
The frames are made from rugged and corrosion-proof all aluminum I-beams.
The T-Sport® uses a long lasting 48-volt system to ensure maximum range using industry leading
Traction batteries managed by the SEVCON computerized controller.
The Hi-output 4.5 kW AC motor is powerful enough to move you and your passengers at speeds up to 25 miles per hour and yet it is efficient enough to deliver a higher range than the industry average.
The T-Sport® also features an on-board 12-volt converter that gives you an in-dash power source to power you cell phone or laptop computer.
For added safety, the T-Sport® has been outfitted with standard headlights, brake lights, turn signals, horn and is the only
golf cart to feature a standard 4-wheel braking system, which includes the use of front wheel hydraulic disk brakes.
With all of the standard features that have been engineered into the T-Sport®,
ACG, Inc. has reset the bar in the Custom Electric Vehicle industry to a level that has never before been seen and that other companies can only hope to come close to.
All 2014 Model Year ACG
NEVs are now covered by exclusive 48-month / unlimited mileage Powertrain Warranty*.
(* see Warranty Manual for details).
Standard Equipment
- Choose from 4 standard colors:

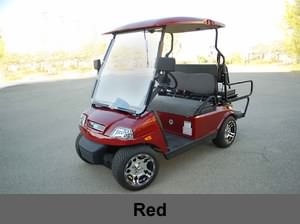

- Burgundy

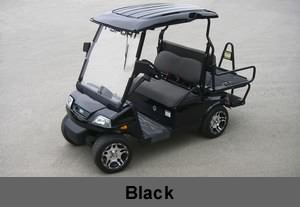

- Black

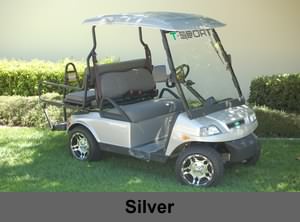

- Silver
- White

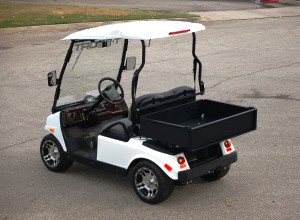

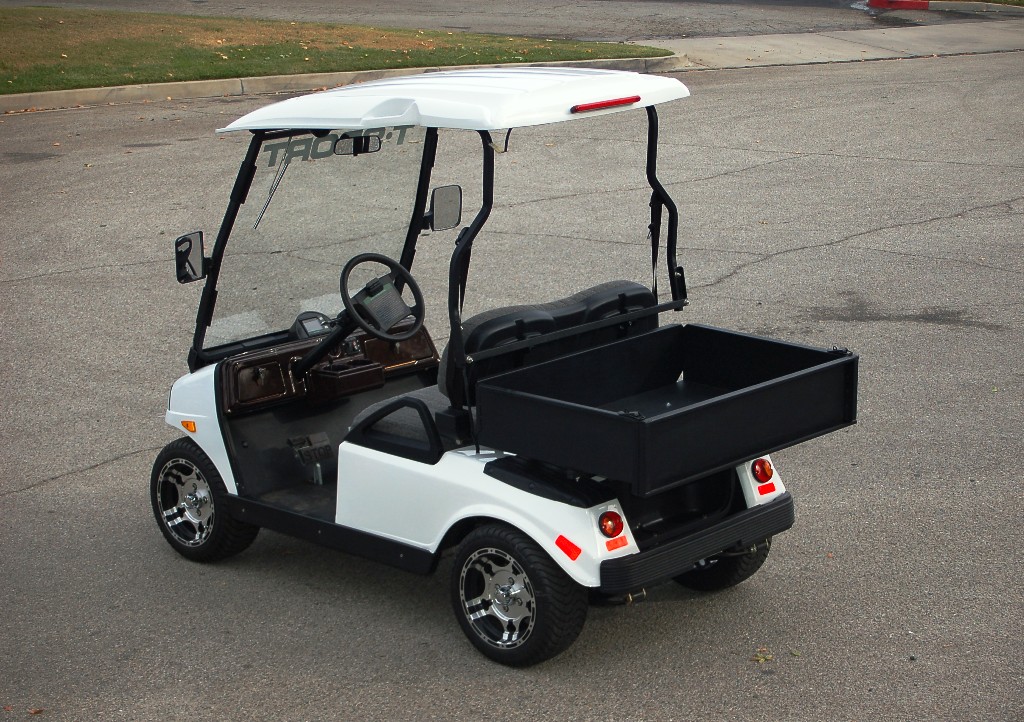

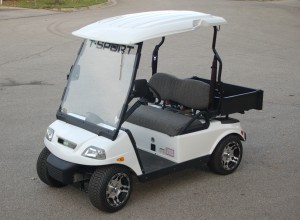

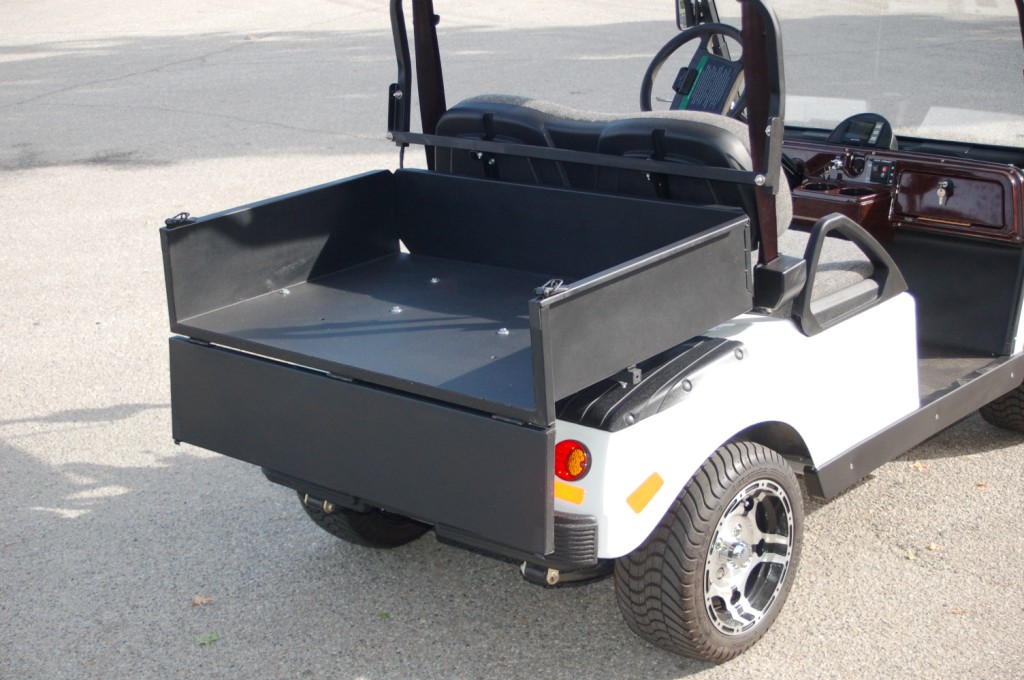

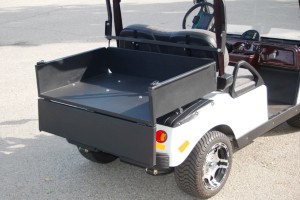

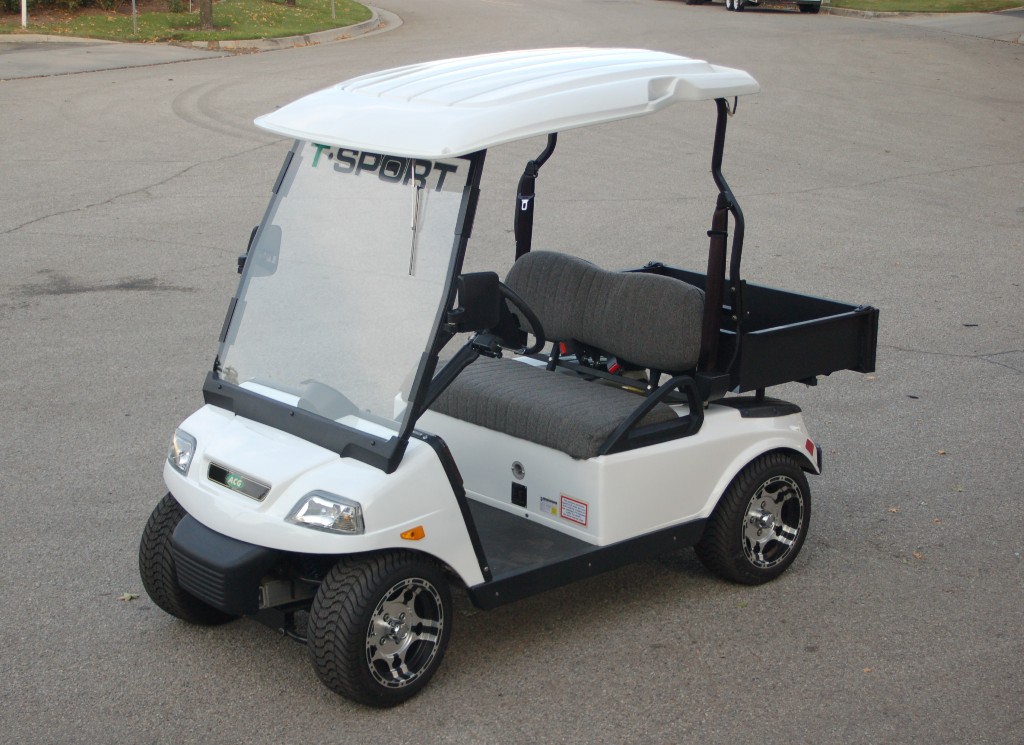

- 2 Passenger Seating + Cargo Box
-
Powerful AC 17.5hp Drive Motor
-
SEVCON 3" LCD Display Screen
-
On Board Delta-Q Charger
-
Automotive style Master ON/OFF Key
-
Street Use Ready LSV
-
Self Diagnostic On Screen Capability
-
2 Locking Glove Boxes
-
2 Cup Holders
-
Adjustable Side Mirrors - Left and Right
-
Center rear view mirror
-
R-Flex Plastic Body
-
Tubular Suspension
-
Independent Front Suspension
-
Hard Top
-
Flip Back Rear Cargo Seat
-
3 Point Seat Belts certified to FMVSS #209
-
4 Wheel Brakes
-
Color Matched Roof
-
Headlights
-
Rear fender protectors
-
Bag-well liner or Bag holder
-
Dual Tail lights with LED Brake Lights
-
High mounted Third Brake light for Safety
-
Windshield Wiper
-
Front and Rear Side Reflectors
-
Horn
-
Front and Rear Turn Signals
-
12" Polished Aluminum Wheels
- Triple Leaf Springs
- Chrome Lug Nuts
- Two-tone Upholstery
Options to Enhance your driving experience
The T-SPORT® is available with a multitude of options to increase your driving comfort and pleasure.
Here is a short List of currently available Options:
-
Sony Xplod AM/FM CD Player with Speakers
-
Removable Dual Golf Bag Holder Attachment
-
Golf Ball Washer
-
Sand and Seed Dispenser
-
Beverage Cooler
-
Storage Basket
-
Car Cover
COLORS
The T-SPORT® is available in several standard colors, but can be on special order painted in any Custom Color you wish.
Custom Paint
The T-SPORT® is also available with customized paint and graphic schemes to promote your company or just add that
special personal touch to your vehicle.
SPECIFICATIONS
| Overall Length |
126 Inches
(with Back Step) |
| Overall Width | 42 ½ Inches |
| Height to top of Windshield | 71 Inches |
| Wheelbase | 65 ½ Inches |
| Ground Clearance | 5 Inches |
Weight
(standard vehicle no batteries) | 738 lb. |
Weight
(Curb, with Batteries) | 1,180 lb. |
Weight
(GVWR) | 2,000 lb. |
Wheels
Front | 12”x7” |
Wheels
Rear | 12”x7” |
Tire Size
Front | 215/35 R12 |
Tire Size
Rear | 215/35 R12 |
Brakes
Front | Hydraulic Disk |
Brakes
Rear | 7” Mechanical Drum Type |
| Drive Motor | Direct Drive
48 Volts
3-phase Induction
4.5 kW |
| Transaxle | Double Reduction, high speed gears |
| Electrical System | 48 volts DC |
| Batteries | Six (6) @ 8V each in series = 48V DC |
| Battery Charger | Delta-Q |
| Speed Controller | SEVCON Gen4 @ 450 Amp Continuous |
| Steering | Rack and Pinion |
| Chassis | Aluminum I-Beam |
| Body Finish | Automotive Paint |
| Interior Material | Marine-type Vinyl |
| Carpet | Marine-type Synthetic |
| Forward Speed | >20 MPH and <25 MPH |
Braking Distance
(from 20 mph) | <20 feet |
| Standard Seating Capacity | 2 |
* MSRP- The Manufacturer's Suggested Retail Price (MSRP) excludes destination freight charge, tax, title, license, dealer fees and optional equipment.
