Finally... a truly Custom Electric Vehicle that is reasonably priced...

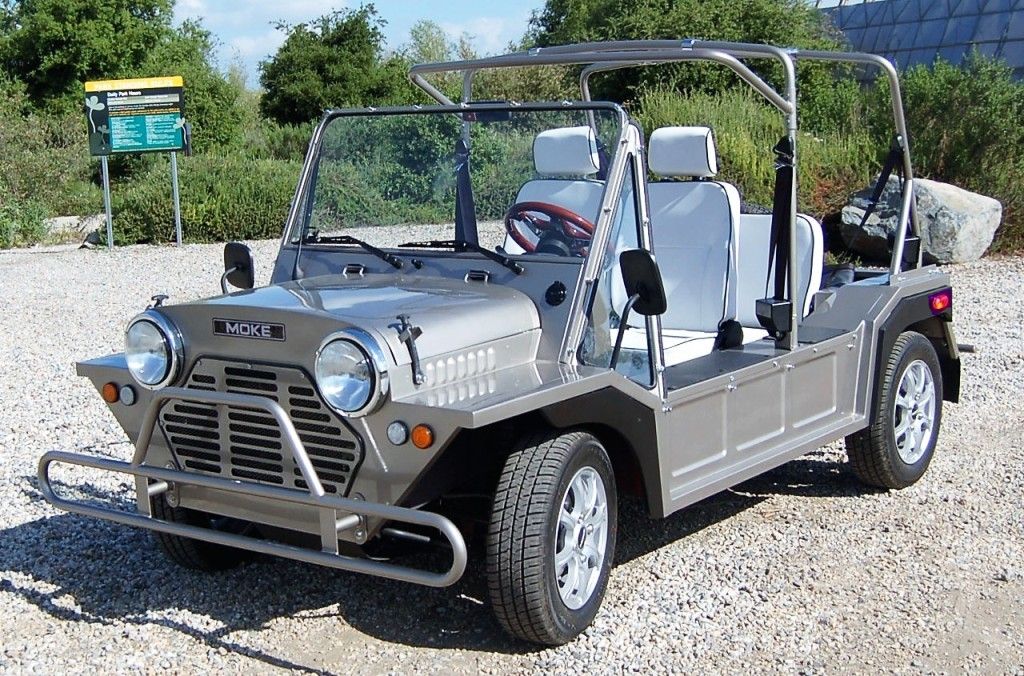

ACG Inc ., the recognized leader in affordable Custom Electric Vehicles, is pleased to introduce the all-new MOKE^™.

Available as LSV/NEV with a top speed of 25 miles per hour, the MOKE^™ is the perfect Electric Vehicle to get you where you need to be.

The MOKE^™ was built with purpose and reliability in mind.

Unmatched Engineering...

The quality of the MOKE^™ begins in the engineering of the car from the ground up.

The MOKE^™ is built using completely new parts.

The bodies are made from rugged and corrosion-proofed steel.

The MOKE^™ uses a long lasting 48-volt system to ensure maximum range using industry leading Traction AGM batteries managed by the SEVCON computerized controller.

The Hi-output 5 kW AC induction motor is powerful enough to move you and your passengers up hill and yet it is efficient enough to deliver a higher range than the industry average.

The MOKE^™ also features an on-board 12-volt converter that gives you an in-dash power source to power your cell phone or laptop computer.

For added safety, the MOKE^™ has been outfitted with standard headlights, brake lights, turn signals, horn and windshield wipers.
It has standard 4-wheel braking system, which includes the use of front wheel hydraulic disk brakes.

With all of the standard features that have been engineered into the MOKE^™, ACG, Inc. has reset the bar in the Custom Electric Vehicle industry to a level that has never before been seen and that other companies can only hope to come close to.

All 2018 Model Year ACG NEVs are now covered by exclusive 48-month / unlimited mileage Powertrain Warranty*.
(* see Warranty Manual for details).

---

Features

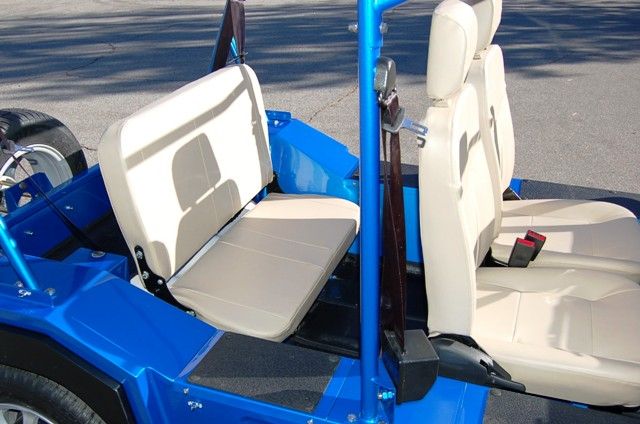

Rear Seat

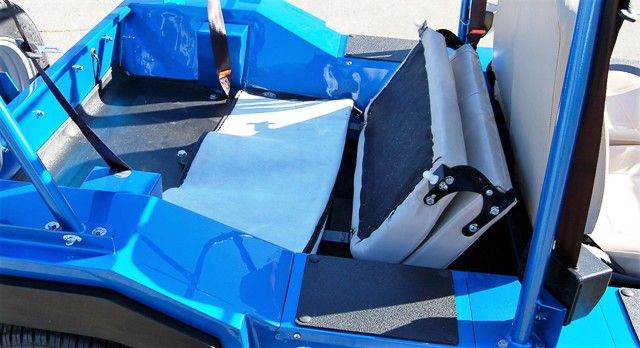

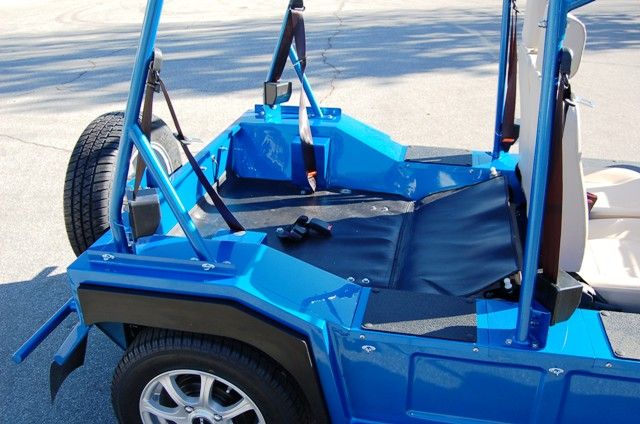

The Rear Seat on the MOKE^™ is multi functional, it can be secured in the upright position, have the back rest tilted forward, can be folded for flat cargo space, or if desired completely removed, as shown in images below.

---

---

---

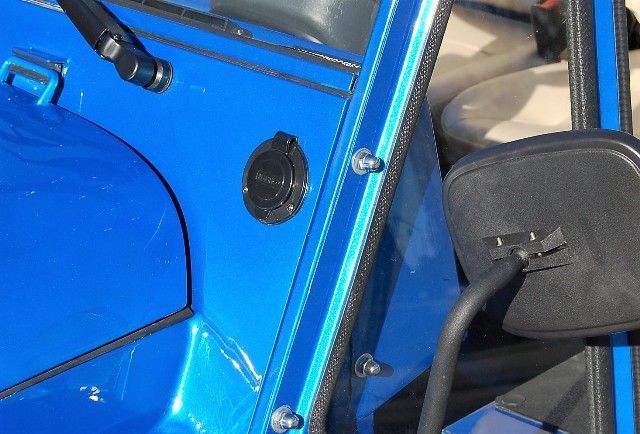

Charge Port

The MOKE^™ Charge AC Inlet Port is below the windshield on the driver side of the vehicle as shown below:

---

---

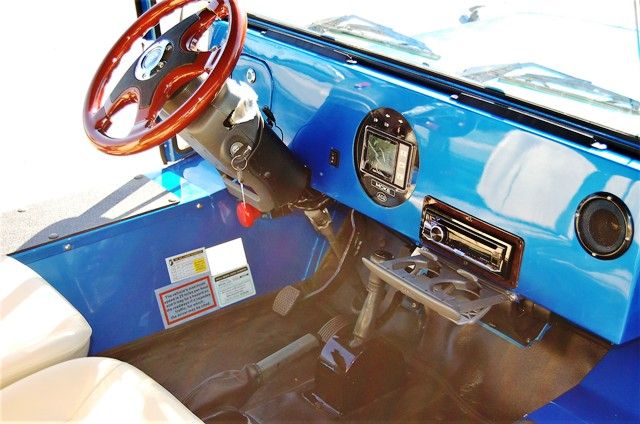

Instrument Panel

The MOKE^™ Instrument panel includes SEVCON display which shows all vehicle functions and also serves as an ON BOARD DIAGNOSTIC DISPLAY (OBD):

---

---

Options to Enhance your driving experience...

The MOKE^™ is available with a multitude of options to increase your driving comfort and pleasure.

It also has available leather interior upgrades, hidden AM/FM CD players, a hard top to protect you from the sun and even full multimedia systems that include DVD players and flip-down monitors.

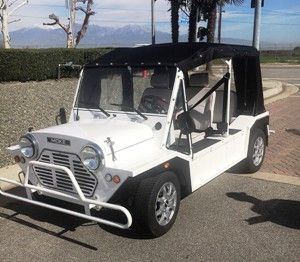

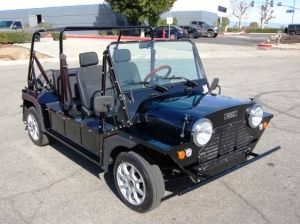

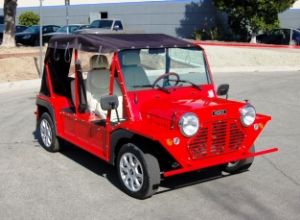

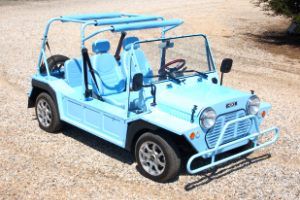

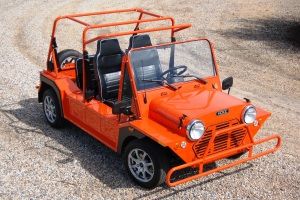

COLORS

---

---

---

---

---

---

---

Custom Paint

The MOKE^™ is also available with customized paint and graphic schemes to promote your company or just add that special personal touch to your vehicle.

SPECIFICATIONS

Overall Length	129 Inches	3290 mm
Overall Width	60 Inches	1530 mm
Height to top of Windshield	59 Inches	1500 mm
Wheelbase	83 Inches	2120 mm
Ground Clearance	7 Inches	180 mm
Weight (standard vehicle no batteries)	541 lb.	245 Kg
Weight (Curb, with Batteries)	948 lb.	430 Kg
Weight (GVWR)	2,500 lb.	1136 Kg
Wheels Front	13”x5.5”
Wheels Rear	13”x5.5”
Tire Size Front	165/65R13
Tire Size Rear	165/65R13
Brakes Front	Hydraulic Disk
Brakes Rear	Hydraulic Drum Type
Drive Motor	Direct Drive 48 Volts	3-phase AC Induction 5 kW
Transaxle	Double Reduction high speed gears
Electrical System	48 volts DC
Batteries	Eight (8) @ 12V each in series/parallel 48V DC Nominal
Battery Charger	On-Board	Delta-Q
Speed Controller	SEVCON Gen4 450 Amp Continuous
Steering	Rack and Pinion
Body	One-piece all steel Unibody
Body Finish	Automotive Paint
Interior Material	Marine-type Vinyl
Carpet	Marine-type Synthetic
Forward Speed	<25 MPH (NEV)
Braking Distance (from 12 mph)	<8 feet
Standard Seating Capacity	4
